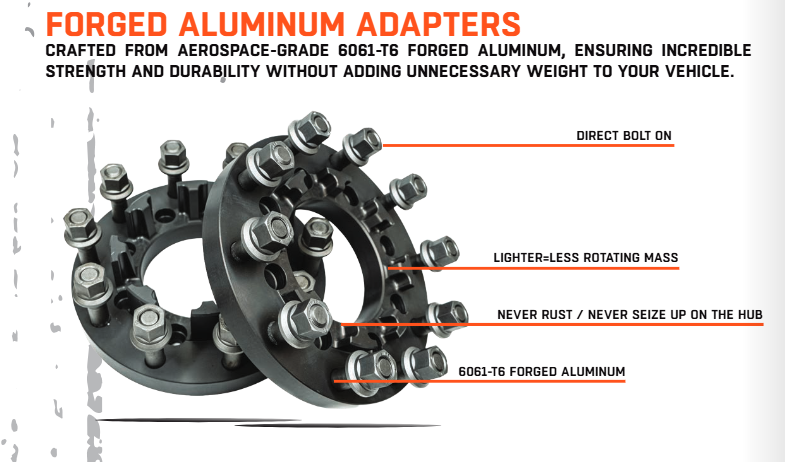

Crafted from aerospace-grade 6061-T6 Forged aluminum ensuring strength and durability without adding unnecessary weight to you vehicle.
Direct bolt on
Lighter weight = less rotating mass
Never rust / seize up on the hub
6061-T6 forged aluminum
1.25" Thickness for maximum strength
Hard anodized gray
Hub Centric 10x225 Ford 450/550, Ram 4500/5500 Fitment
FREE SHIPPING!
Includes 2 front hub centric adapters with all installation hardware and 2 rear adapters
Features
- Made out of 6061 T-6 aluminum billet bars
- Compatible with both Alcoa and aftermarket wheels
- Hub and wheel centric, ensuring no vibration even at high speeds
- Engineered for extreme-duty vehicles, safe for heavy-duty towing
- Proven to support towing capacities of up to 36,000 lbs with our adapters
- Includes all necessary mounting hardware
Specifications
-
Vehicle Bolt Pattern: 10x225 MM
-
Vehicle Hub Bore: 170.1 MM
-
Wheel Bolt Pattern: 10x285.75 MM
-
Wheel Bore: 220.1 MM
-
Thread Pitch: 22x1.5
-
Thickness: 1.25"
-
Material: Billet Aluminum 6061 T-6
-
Hardware: 10.9 Grade
-
Finish: Raw Aluminum
-
Torque Specs: Factory specifications recommended
